Description:
This article describes how to configure an SNMP user on a GS-24xx / GS-3xxx / XS-3xxx series switch with LCOS SX as of version 4.30 and monitor the switch with the LANmonitor via SNMPv3. Of course It is also possible to use any other monitoring tool which supports SNMPv3.
If a monitoring tool other than LANmonitor is used, it is possible, that some parameters have to be configured differently (e.g. the encryption). Please contact the respective manufacturer regarding the necessary settings. |
Requirements:
Procedure:
1) Configuring the SNMP user on the Switch:

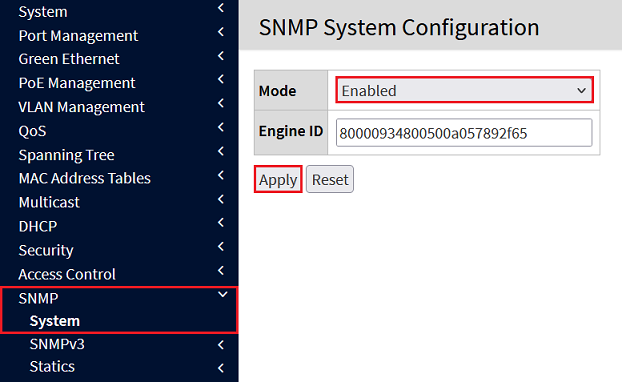

1.1) Open the webinterface of the device, go to the menu SNMP → System and for Mode select the option Enabled to activate SNMP. Afterwards, click Apply.
1.2) Go to the menu SNMP → SNMPv3 → Users and click Add New Entry to create an SNMP user.

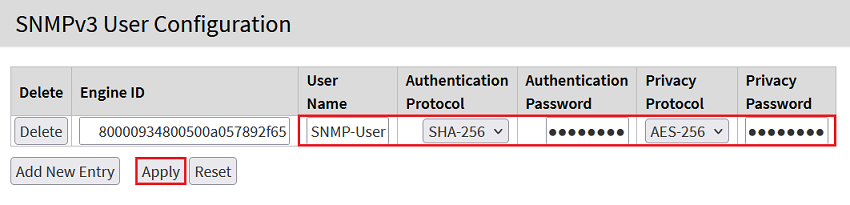

1.3) Modify the following parameters and click Apply:
- User Name: Enter a descriptive user name (in this example SNMP-User).
- Authentication Protocol: Make sure, that the option SHA-256 is selected.
- Authentication Password: Enter a password for the authentication. In conjunction with the user name it is used for the login. The password must have between 8 to 64 characters and the allowed character set ranges from ASCII numbers 33 to 126.
- Privacy Protocol: In the dropdown menu select the option AES-256.
- Privacy Password: Enter the same password entered for the Authentication Password. It is used for data encryption. The password must have between 8 to 64 characters and the allowed character set ranges from ASCII numbers 33 to 126.
The Authentication Password and the Privacy Password must be the same as otherwise the login via LANmonitor won't be possible. |

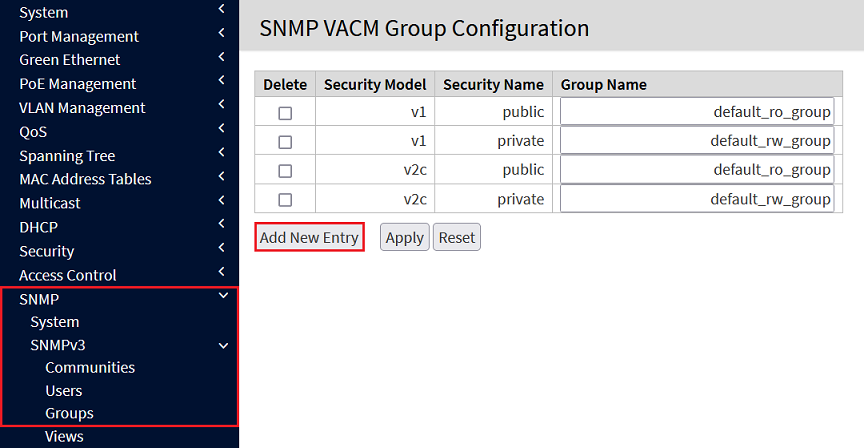

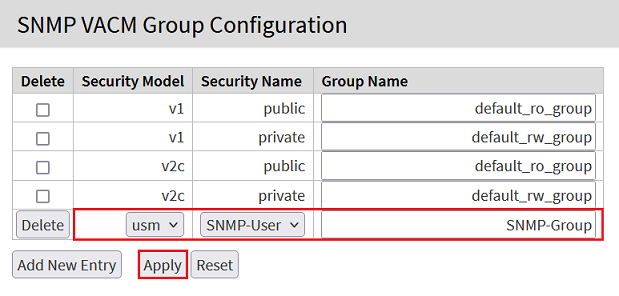

1.4) Go to the menu SNMP → SNMPv3 → Groups and click on Add New Entry to create an SNMP group.
1.5) Modify the following parameters and click Apply:
- Security Model: In the dropdown menu select the option usm. USM (User-based Security Model) is only used for SNMPv3.
- Security Name: Make sure, that the SNMP user created in step 1.3) is selected.
- Group Name: Enter a descriptive name for the SNMP group.

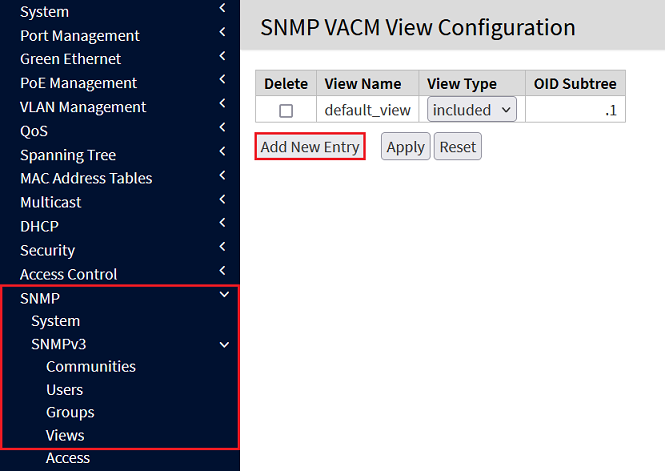

1.6) Go to the menu SNMP → SNMPv3 → Views and click on Add New Entry to create an SNMP view.

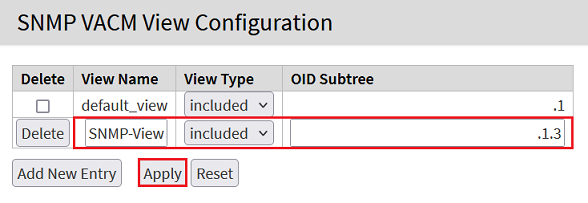

1.7) Modify the following parameters and click Apply:
- View Name: Enter a descriptive name for the SNMP view.
- View Type: In the dropdown menu select the option included.
- OID Subtree: Enter the string .1.3. The OID path of LANCOM devices begins with this string.

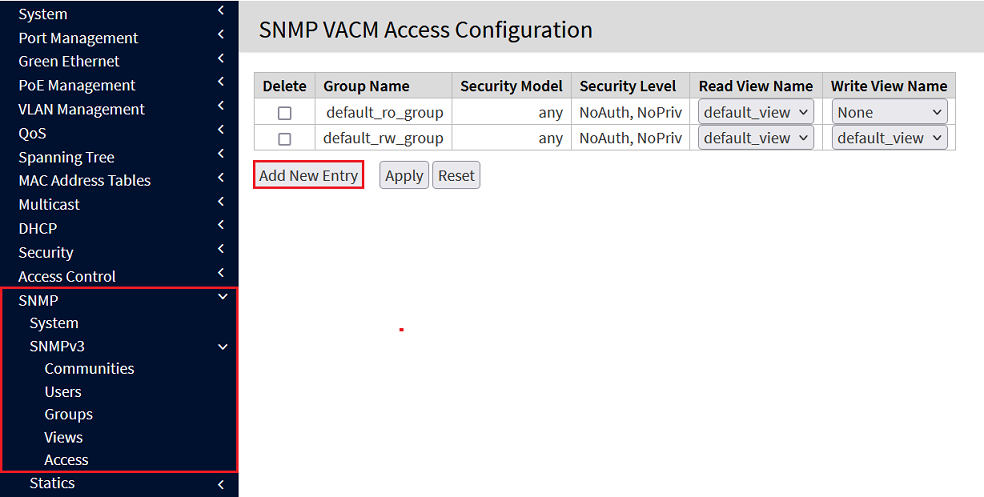

1.8) Go to the menu SNMP → SNMPv3 → Access and click on Add New Entry to create the SNMP access.

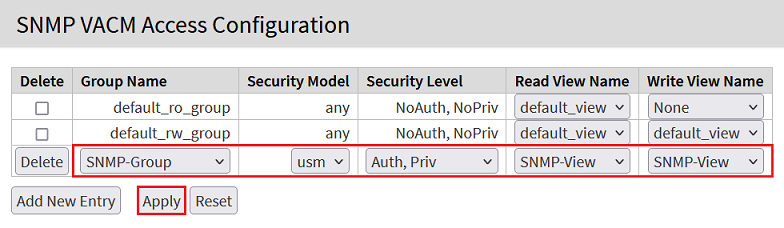

1.9) Modify the following parameters and click Apply:
- Group Name: Make sure, that the SNMP group created in step 1.5) is selected.
- Security Model: In the dropdown menu select the option usm.
- Security Level: In the dopdown menu select the option Auth, Priv.
- Read View Name: Make sure, that the SNMP view created in step 1.7) is selected.
- Write View Name: Make sure, that the SNMP view created in step 1.7) is selected.
1.10) Click on the red disk symbol in the upper right corner to save the configuration as the start configuration .
The start configuration is retained even if the device is restarted or there is a power failure. |

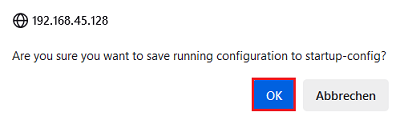

1.11) Acknowledge the save process by clicking OK .
2) Monitoring the switch via LANmonitor:

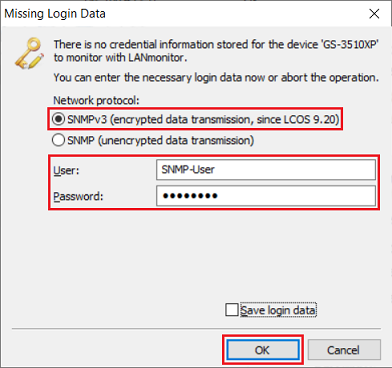

2.1) Connect to the switch via the LANmonitor, make sure, that the protocol SNMPv3 is selected and enter the login credentials for the SNMP user entered in step 1.3).

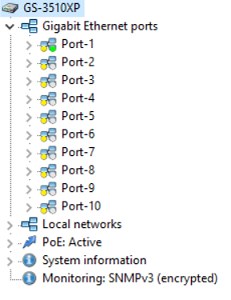

2.2) The switch can now be monitored via the LANmonitor and various status information can be read out. If write permissions are given, individual ports can be deactivated and reactivated, for example.
